Bơm bánh răng Speed 2P Series

Bơm thủy lực bánh răng Speed 2P Series 5050, 5070, 5090, 5105, 5120, 5246, 5158, 5220

Bấm vào hình để xem

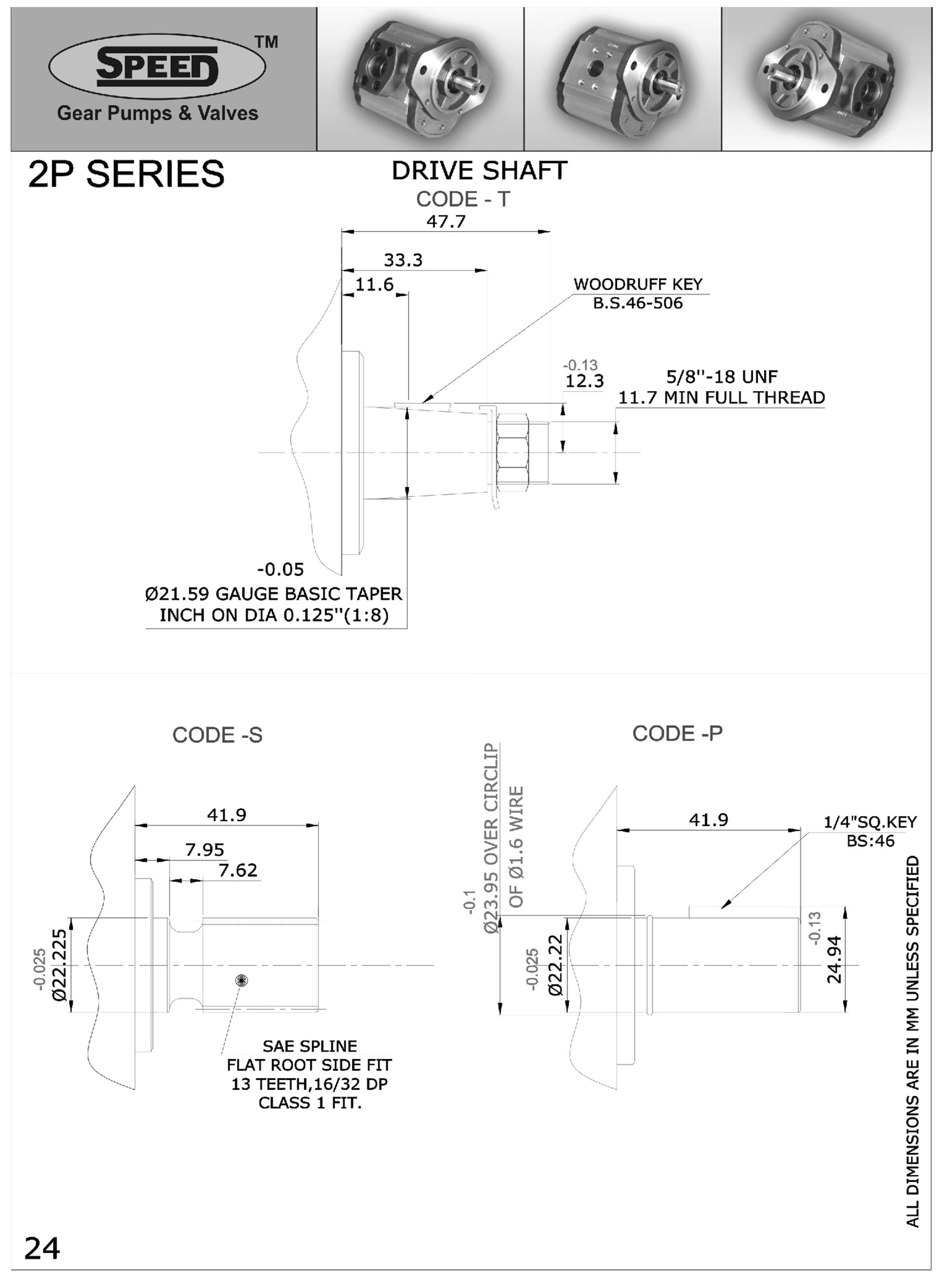

Mã SP:2P Series - Drive Shaft
Xuất xứ:Ấn Độ
Giá bán:Liên hệ

Bơm thủy lực bánh răng Speed 2P Series

THÔNG SỐ SẢN PHẨM:

Pressures quoted are relief valve maximum by-pass performance with SAE 20W oil at 50* C

PUMP TYPE	Nominal Displacement	Nominal Delivery @ 1500 rpm & Pressure P	Maximum Continuous Pressure P		Speed at Maximum Continuous Pressure P
	Cc/rev	lpm	psi	bar	Max	Min
5050	15.13	22.70	3000	207	3000	550
5070	21.33	32.00	3000	207	3000	550
5090	27.33	41.00	3000	207	3000	650
5105	31.80	47.70	3000	207	3000	600
5120	36.33	54.50	3000	207	3000	650
5146	44.33	66.50	2525	174	2500	650
5158	47.87	71.80	2525	174	2500	650
5220	66.67	100.00	2000	138	2500	650

KÍCH THƯỚC LẮP ĐẶT:

PUMP TYPE	DIM-X	DIM-Y
2P5220	81.7	167.8
2P5200	72.8	150.0
2P5180	69.7	143.8
2P5158	74.3	153.0
2P5146	72.8	150.0
2P5120	69.7	143.8
2P5105	67.9	140.0
2P5090	59.1	122.6
2P5070	56.7	117.7
2P5050	54.3	113.0

máy bơm thủy lực, bơm thủy lực bánh răng, bơm thủy lực cánh gạt, bơm thủy lực piston, speed, vinatrade, máy bơm công nghiệp, bom thuy luc, may bom thuy luc, maybomthuyluc.com

PUMP CODIFICATION CHART – TANDEM PUMPS

0P	0P	5003	5003	C	P	S	T	T	B	N

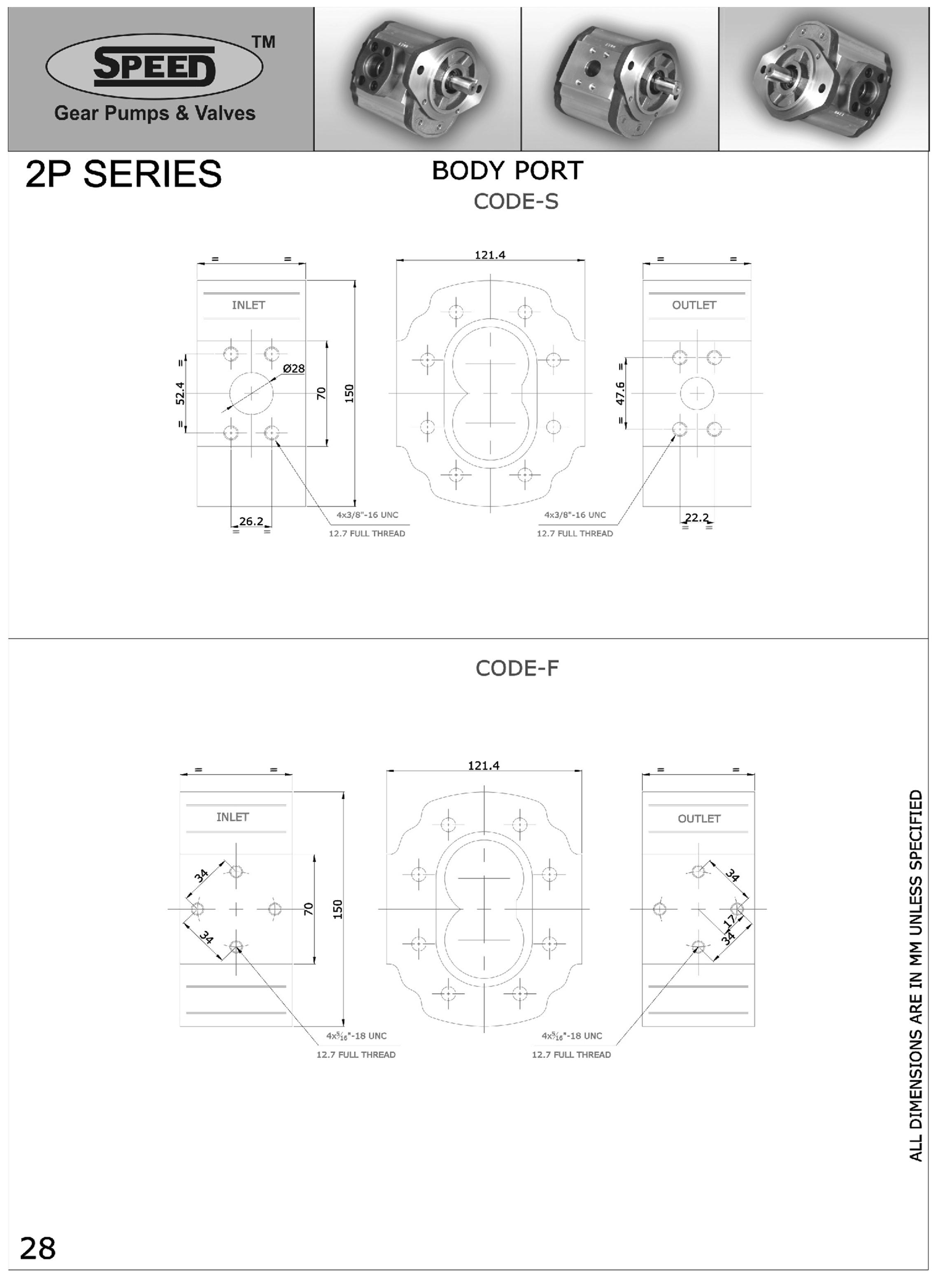

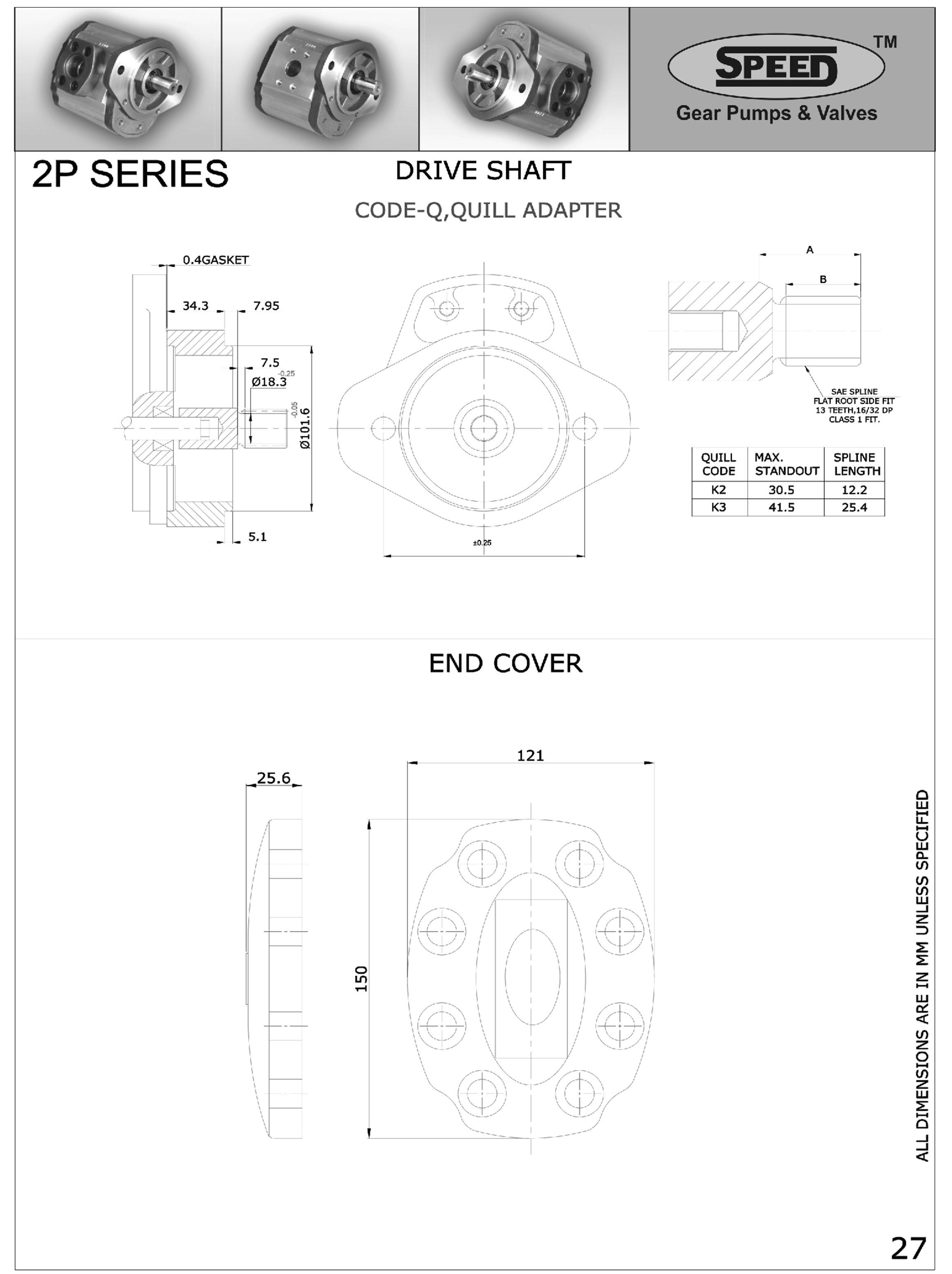

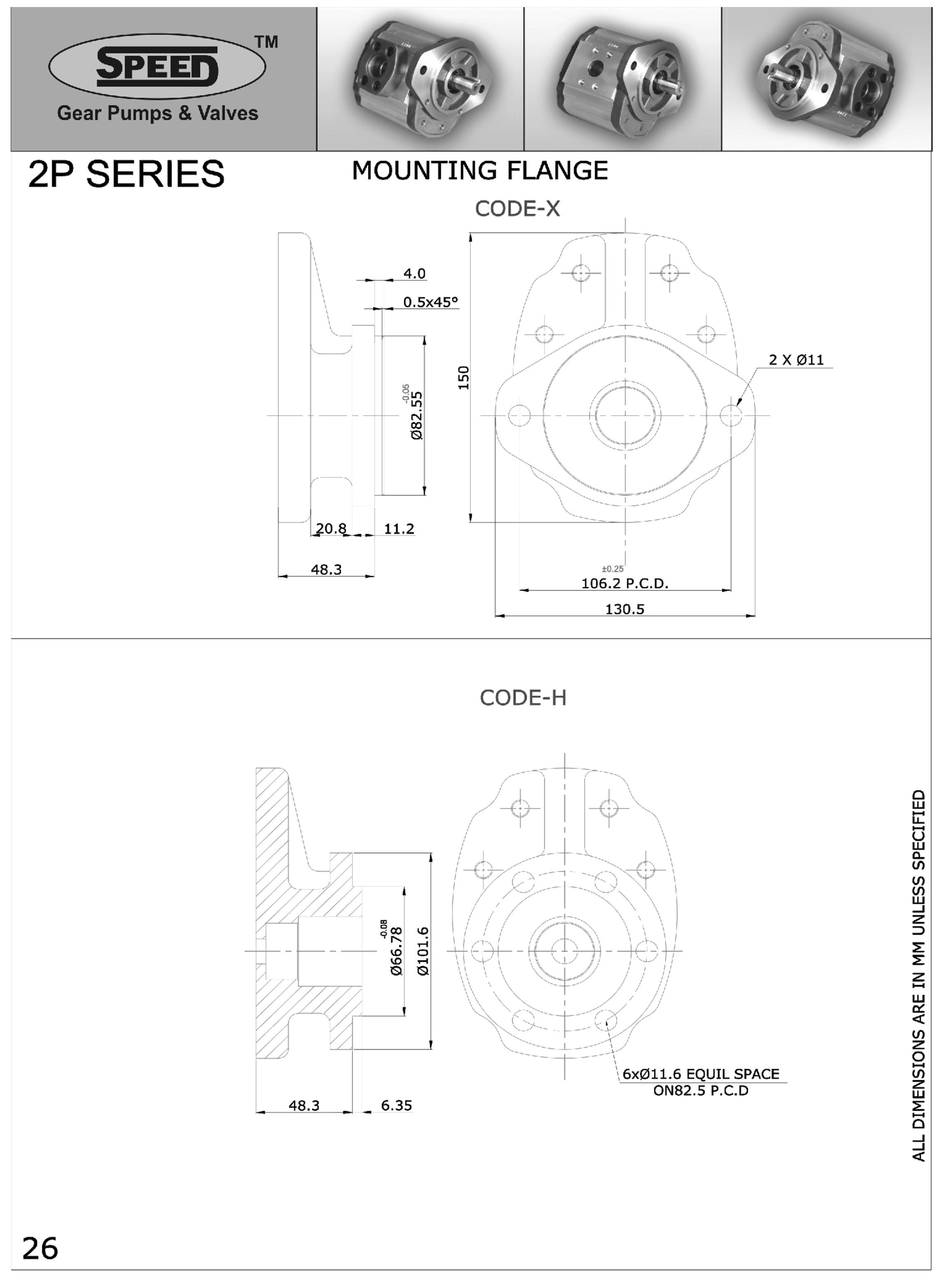

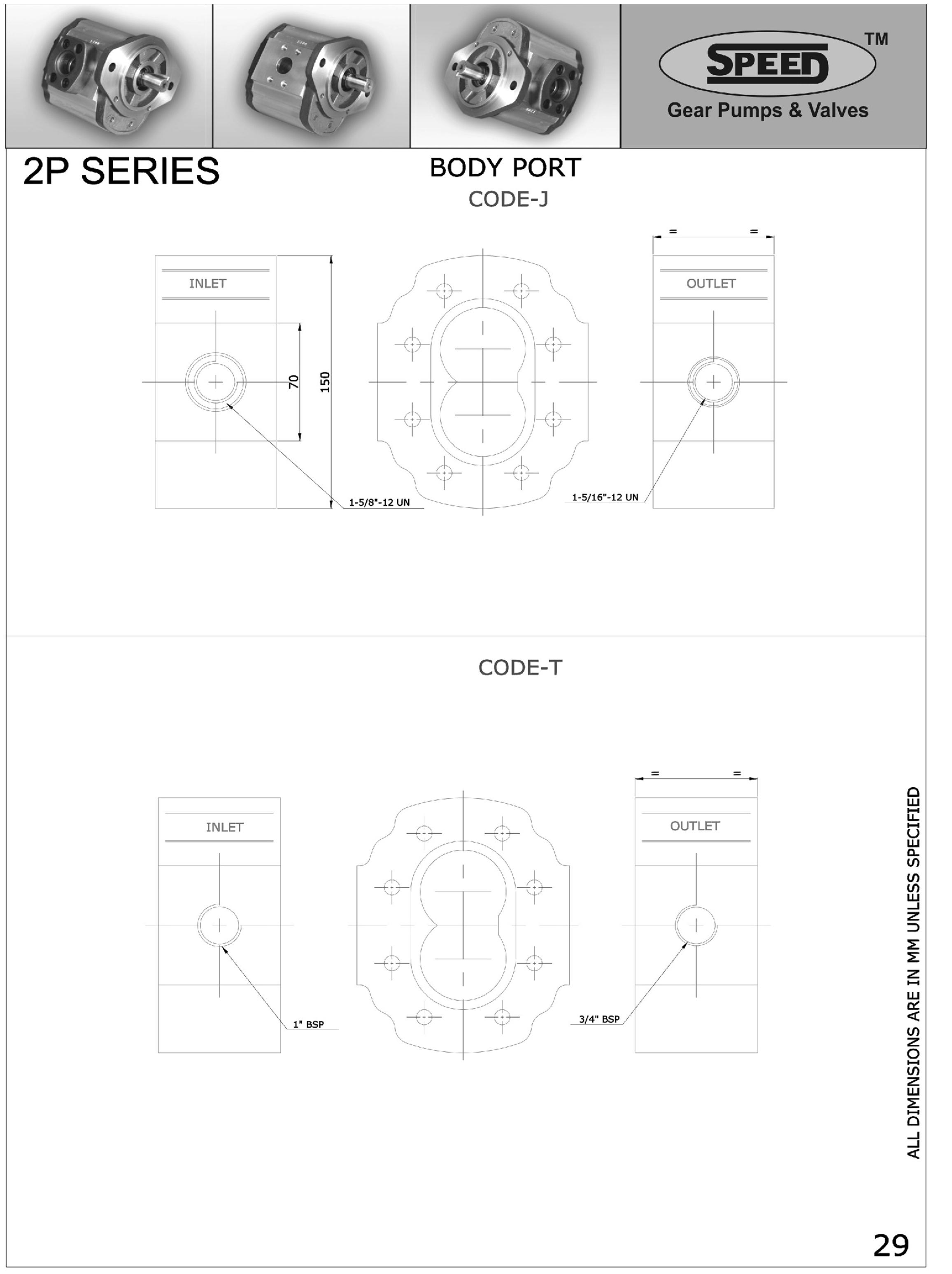

Frame Size- Front Pump	Frame Size- Rear Pump	Displace-ment- Front Pump	Displace-ment- Rear Pump	Direction of Rotation	Shaft	Mounting Flange	Inlet & Outlet Ports- Front Pump	Inlet & Outlet Ports- Rear Pump	End Cover	Seals

EXAMPLE OF ORDERING CODE

0P	0P	5015	5008	C	P	S	T	T	B	N
Frame Size- Front Pump	Frame Size- Rear Pump	Displace-ment- Front Pump	Displace-ment- Rear Pump	Direction of Rotation	Shaft	Mounting Flange	Inlet & Outlet Ports- Front Pump	Inlet & Outlet Ports- Rear Pump	End Cover	Seals
