Bàn kẹp ống dẫn (Pipe Clamps) - Loại nhẹ
Bàn kẹp ống dẫn (Pipe Clamps) - Loại nhẹ

Pipe clamps are made out from high density polyethel materials having good strenghh and mild steel plates. These pipe clamps aremore suitable where hydraulics pipes line are required to be straight in short as well as long length. Pipe clamps are available in following ranges.

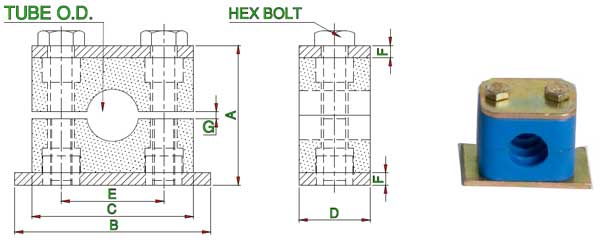

| Ord. code | Tube O.D. | A | B | C | D | E | F | G | Hex bolt |
| PCS 06 | 6 | 31 | 45 | 35 | 30 | 30 | 3 | 1 | M6 X 30 |
| PCS 08 | 8 | ||||||||
| PCS 10 | 10 | ||||||||
| PCS 12 | 12 | 37 | 55 | 40 | 30 | 26.5 | 3 | 1.5 | M6 X 35 |
| PCS 14 | 14 | ||||||||
| PCS 15 | 15 | ||||||||
| PCS 16 | 16 | ||||||||
| PCS 18 | 18 | ||||||||
| PCS 20 | 20 | 41 | 60 | 48 | 30 | 33 | 3 | 1.5 | M6 X 40 |
| PCS 22 | 22 | ||||||||
| PCS 25 | 25 | ||||||||
| PCS 28 | 28 | 48 | 65 | 55 | 30 | 40 | 3.5 | 2 | M6 X 45 |
| PCS 30 | 30 | ||||||||
| PCS 33 | 33 | 58 | 76 | 68 | 30 | 52 | 3.5 | 2.5 | M6 X 55 |
| PCS 35 | 35 | ||||||||
| PCS 38 | 38 | ||||||||
| PCS 42 | 42 |
